Plywood
The plywood panels are glued crosswise with a water-resistant phenolic resin. The gluing meets the requirements of EN 314-2 class 3 – the highest gluing class for plywood for outdoor use
High wear and scratch resistance
Taber abraser test: up to 700 rotations
Surface

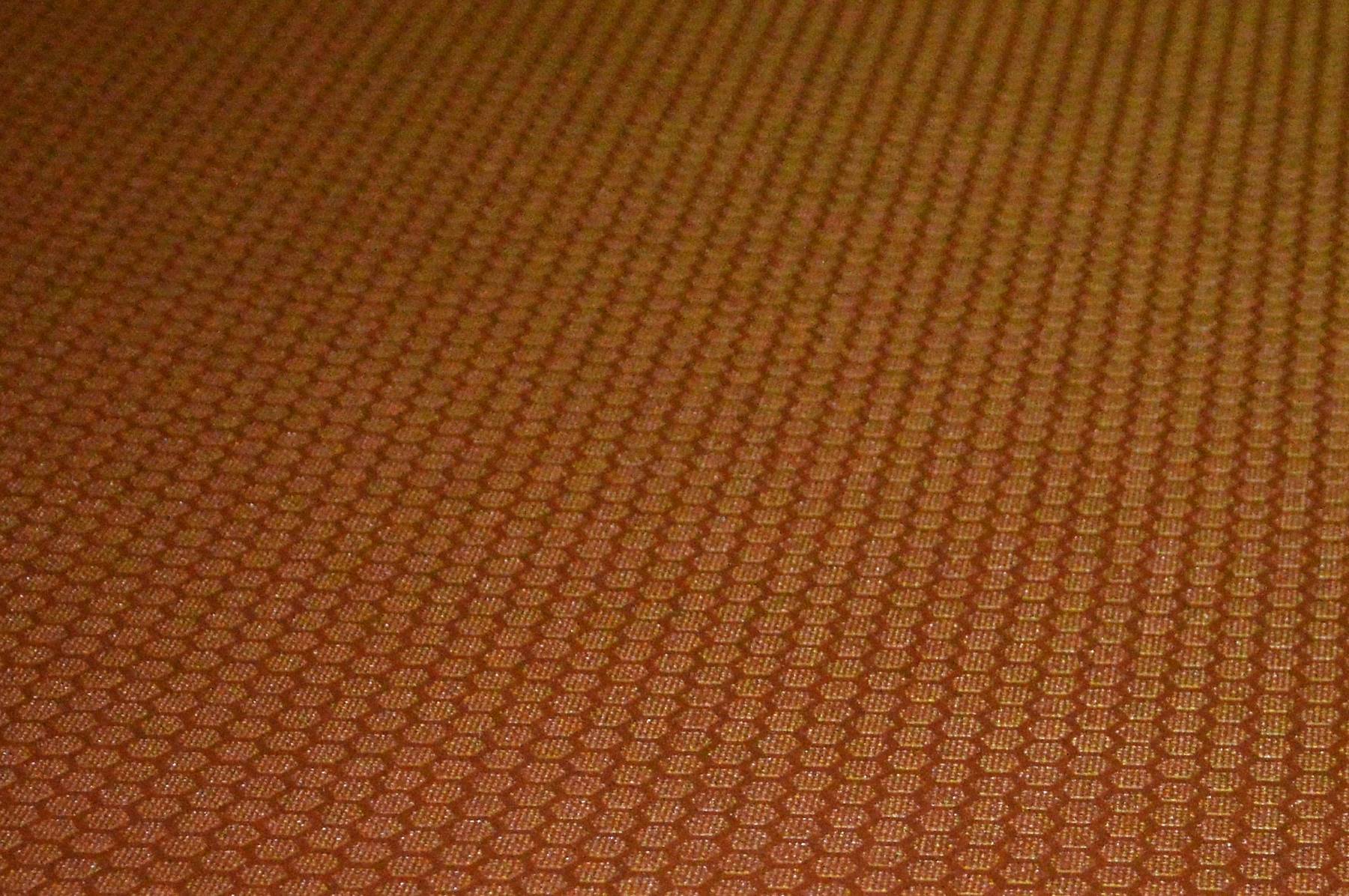

- Hexagonal surface:
Phenolic resin film brown 240 g/m² with Hexa structure.
- Backside:
Phenolic resin film brown 120 g/m² with smooth surface
Other coatings or colors on request.
Edges sealed with an acrylic varnish brown.
Application
Welde Robusta HEXA is designed for application in the segment of light commercial vehicles such as vans, small trailers or in the field of construction for scaffolding or
loading platforms.
Welde Robusta Hexa plywood panels are particularly suitable for all areas where easy cleaning of the surface and anti slip properties are demanded.
Plywood thickness
| Thickness in mm | Number of veneers | Weight in kg/m2 | Weight/pack in kg | Number of sheets/pack |
|---|---|---|---|---|
| 15 | 7 | 7,00 | 1520 | 67 |
| 18 | 9 | 8,30 | 1520 | 56 |
| 21 | 9 | 9,90 | 1520 | 48 |
Other thickness on request
Plywood dimension
1250 x 2500 mm/ 2500 x 1250 mm (only on request)
Tolerance length/Width: according to EN 315
Humidity 10 % +/- 2 %
Structural properties
| Thickness in mm (EN 315) |
E-Modul in N/mm2 (EN 310) |
Bending strength in N/mm2 (EN 310) |
||
|---|---|---|---|---|
| Em5%II | Em5%┴ | fm5%II | fm5%┴ | |
| 15 | 3330 | 2766 | 32 | 28,5 |
| 18 | 3330 | 1946 | 31 | 29,7 |
| 21 | 4197 | 1943 | 31,3 | 23,3 |
Other panel thicknesses on request
FSC® or PEFC® compliant delivery is possible on request
